2) It comes in 5M/roll with 4 pin female/male connector on both end separated power/groud wires,customized length is workable.
3) Flexible PCB material,each LED/Pixel can be cut.
4) 60LEDs/M,5V low voltage inputted,don’t over 5V,otherwise you will destroy the entire strip.
5) 10mm width PCB,0.25mm thickness with 3M tape back side for non-waterproof version.12mm width, silicon tube for waterproof type.
2) It comes in 5M/roll with 4 pin female/male connector on both end separated power/groud wires,customized length is workable.
3) Flexible PCB material,each LED/Pixel can be cut.
4) 60LEDs/M,5V low voltage inputted,don’t over 5V,otherwise you will destroy the entire strip.
5) 10mm width PCB,0.25mm thickness with 3M tape back side for non-waterproof version.12mm width, silicon tube for waterproof type.
Features
1. LED chip——SMD5050.
2. Standard Reel Length: 5meter/roll, also can be customized.
3. Cutted: you can cut this stuff pretty easily with wire cutters
DC12V: cutted per 1LED
4. Power:9.2W/M.
5. Power supply:
DC12V led strip: you must use a 12V DC power supply to connect this strip.
6. Waterproof rating:
IP20:non-waterproof
IP65:drop glue waterproof
IP65:nano waterproof
IP67:silicone tube waterproof
7. Install: non-waterproof: with 3M adhesive on back side for sticky;
waterproof: screw+silicon clip, or 3M adhesive back side.
8. Life-span: more than 50,000 hours
9. Packing:usually 5meter/roll, 1roll/bag
black reel/white reel,anti-static bag

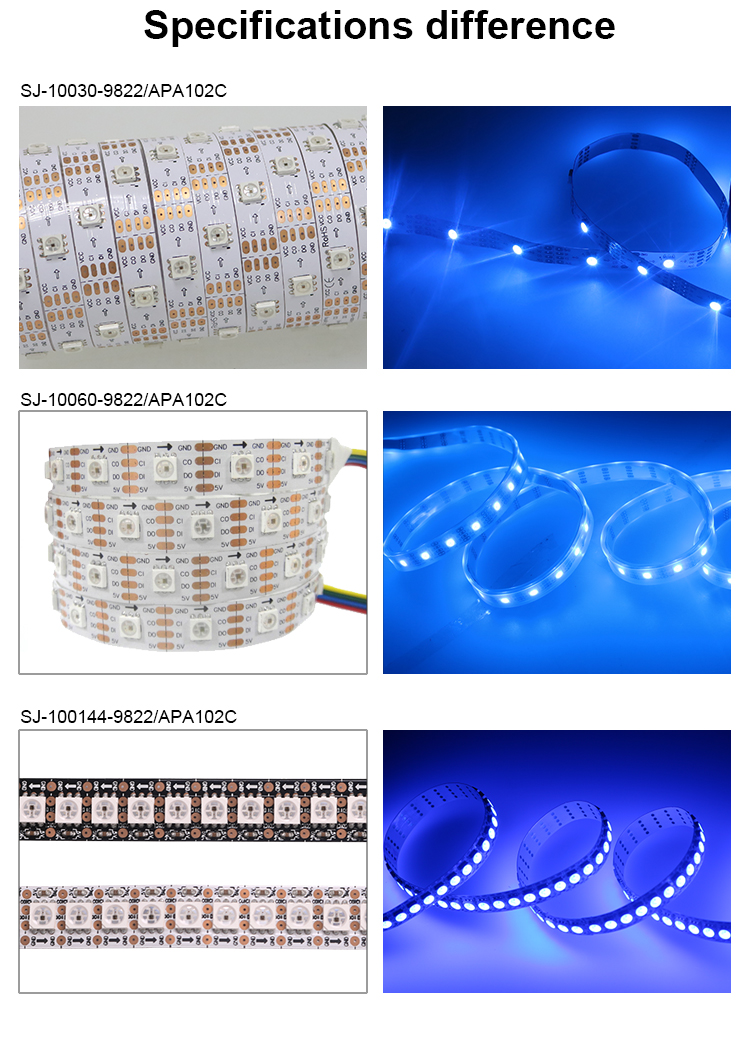

| P/N | Size/mm | LED Type | LED QTY | PCB Color | IC Chip | Voltage | Wattage | IP Rate |
| SJ-10060 | 5000*10mm | SMD5050 RGB | 60LEDs/m | White/Black | APA102/SK9822 | DC5V | 18W | IP20 IP67 |
