1. Color and effect: addressable lights you can set to any color, or animate, like running water, chasing and scanning etc.
2. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables.

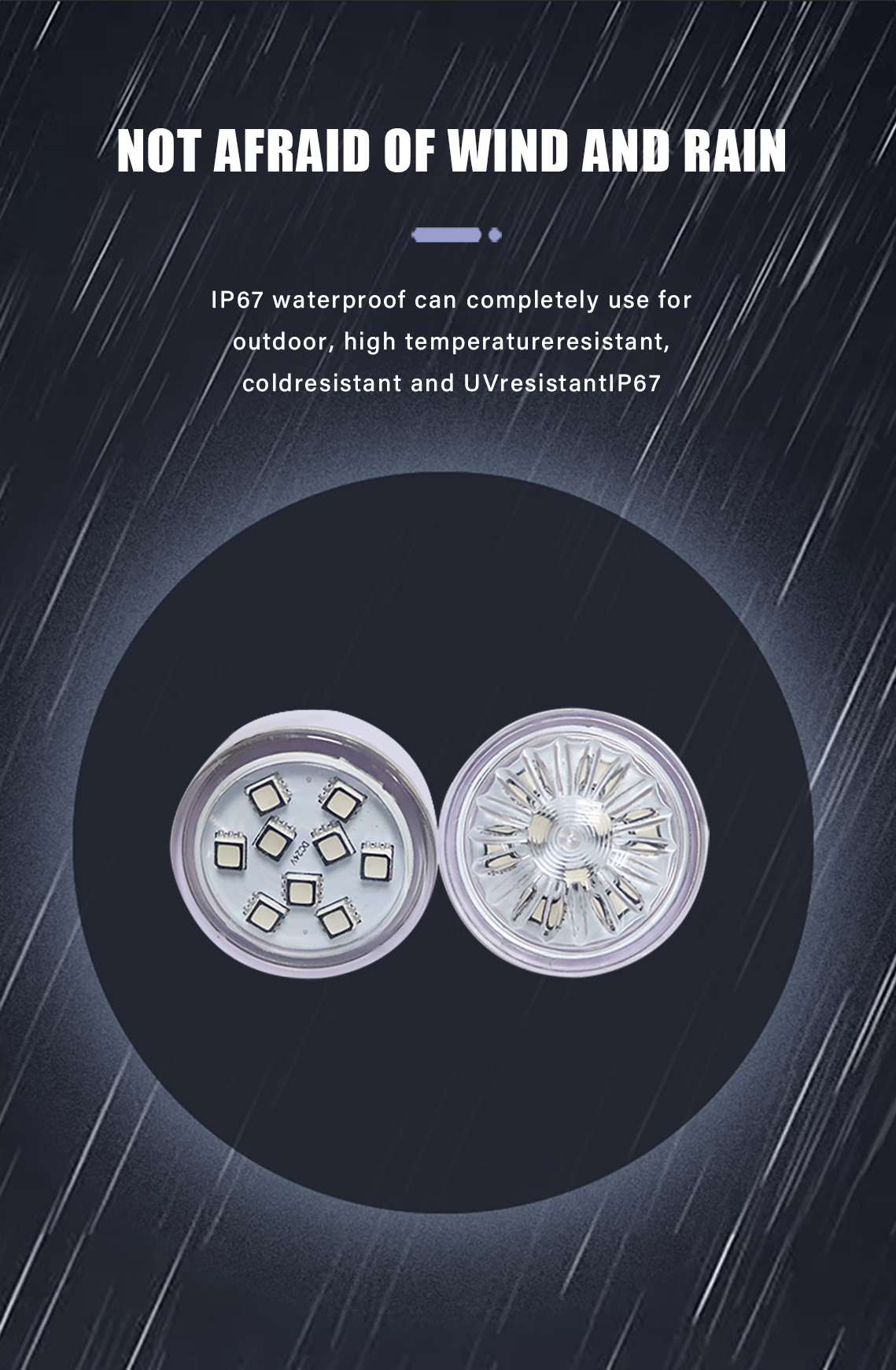

3. Waterproof IP66, with silicon glue waterproof protection.
4. Easy to install, better drill the hole about 19-22 mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply should use a 24V DC power supply to power this pixel, do not use higher than 25V, otherwise you can destory the
pixel.

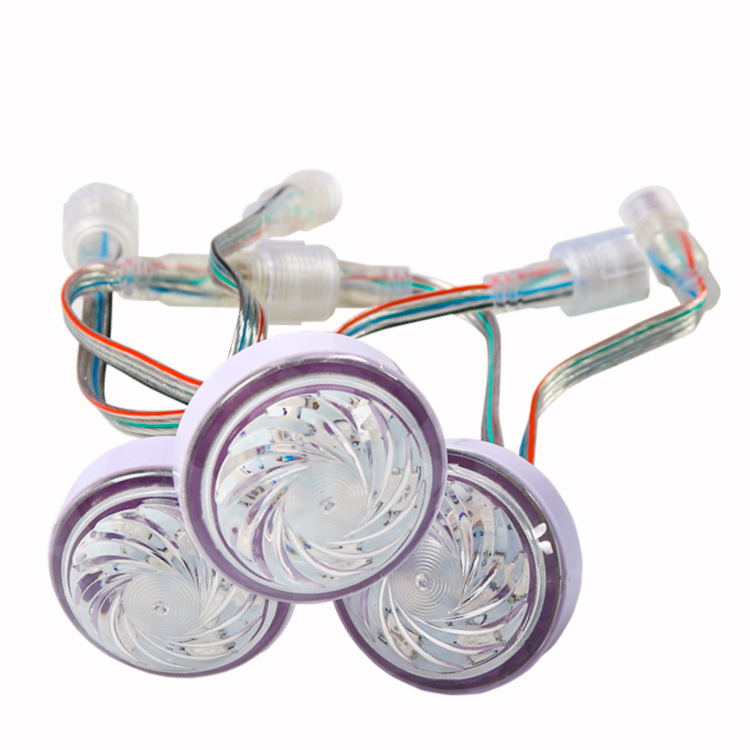

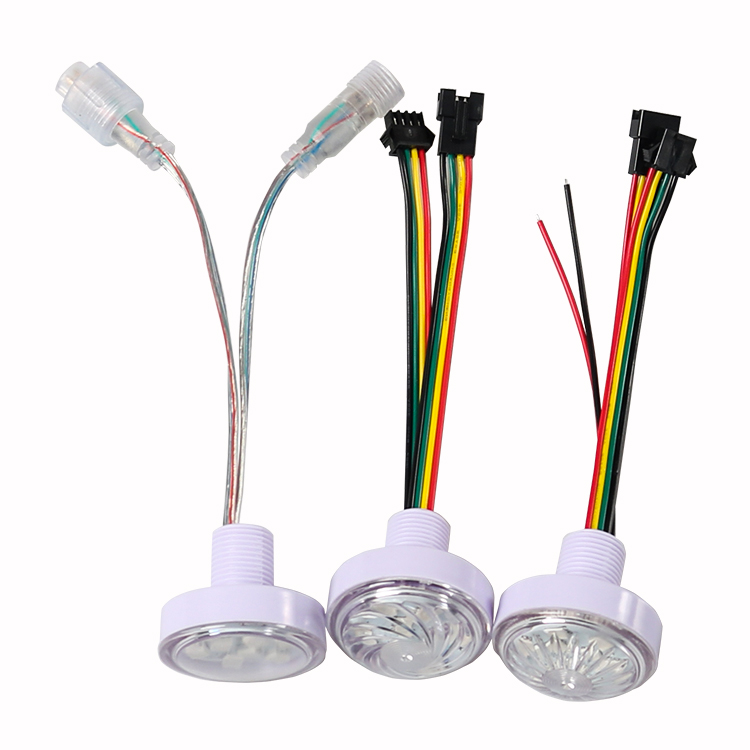

7. Connectors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC24V+, GND
1. Color and effect: addressable lights you can set to any color, or animate, like running water, chasing and scanning etc.
2. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables.
3. Waterproof IP66, with silicon glue waterproof protection.
4. Easy to install, better drill the hole about 19-22 mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply should use a 24V DC power supply to power this pixel, do not use higher than 25V, otherwise you can destory the
pixel.
7. Connectors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC24V+, GND
| Part NO | SJ-45-9 |
| Lighting Source | 9pcs SMD5050 RGB LED |
| Operate Voltage | DC12V/DC24V |
| Consumption Watt/M | 2.16W (max) |

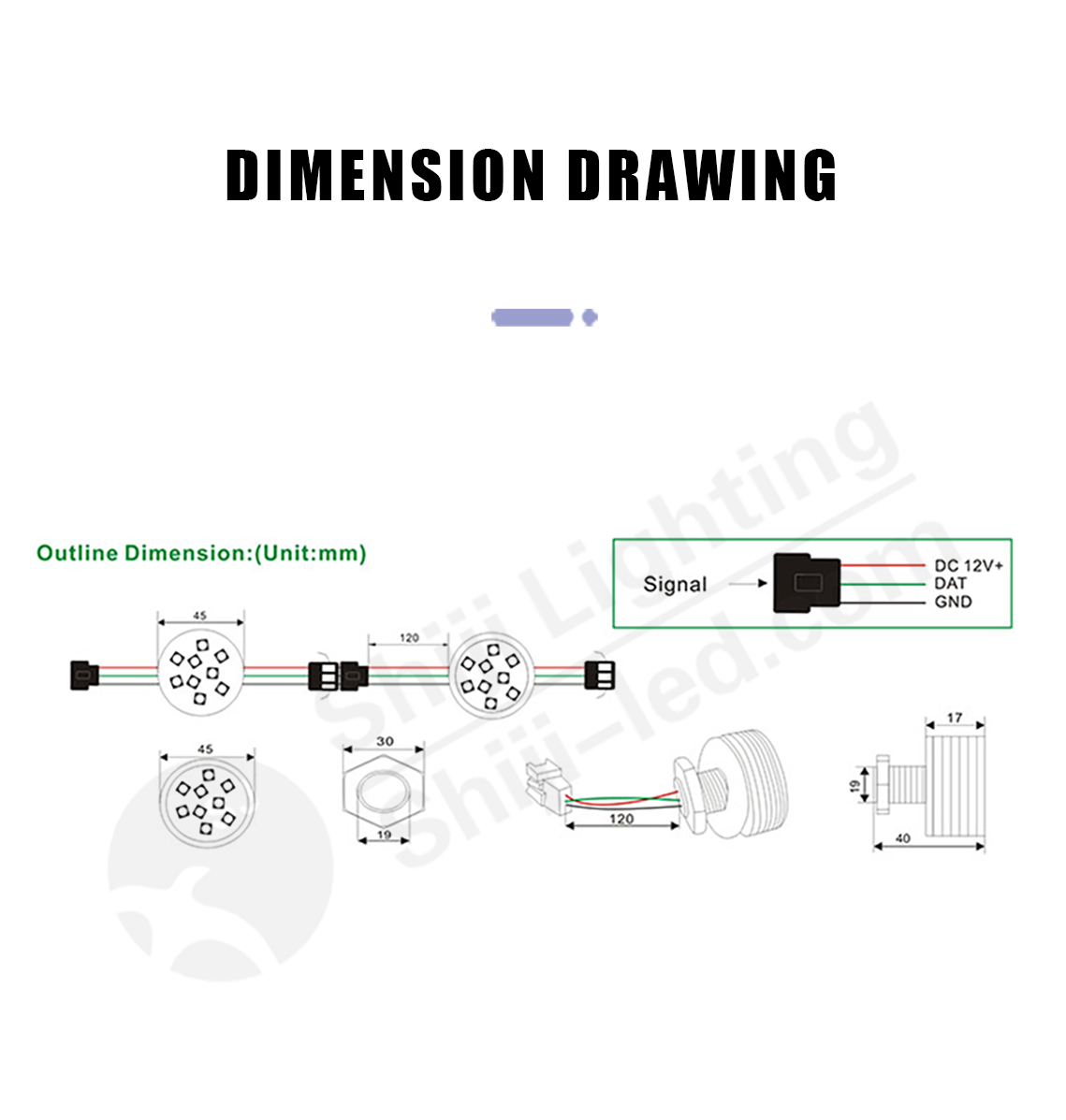

| Size (mm) | 45mm |
| IC Chip | UCS2903 |
| Waterproof Grade | IP66 |
| Shell Shape | Flat/Vertical cover |
